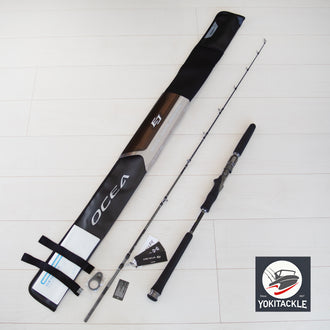

Shimano 25 OCEA EJ B510-5 Baitcasting Rod
$490.99
In stock
Your shopping bag is empty
Go to the shopShimano Ocea EJ is a dedicated electric jigging rod series engineered for greater power, comfort and control. Its specialized blank design focuses on a soft-tip and heavy-butt concept.
The softer tip helps anglers recognize jerk timing while absorbing the initial force and direct impact generated by the powerful retrieve of an electric reel, reducing unnecessary over-action. The butt section provides the power for working the jig, while the bending fulcrum is positioned closer to the angler to reduce physical load.
This balance supports high-speed jerking as well as slow- and medium-speed presentations, while the blank bends through the grip area to store energy and generate strong response for precise control of heavy jigs. During fights, the tenacious bending action absorbs resistance and helps reduce hook-offs.
The guide system uses a spiral layout with lightweight single-foot X Guide 3D Titanium guides in the tip section. Their cold-forged integrated titanium construction combines strength, low weight and a smooth edge-free shape, while the calculated guide angle helps reduce line trouble and promotes smooth line flow.
Short guide feet also allow the blank to bend more naturally. A newly developed cable holder secures the electric reel cable at the rear end of the grip, reducing cable movement during jerking and allowing quick attachment and removal when setting up, storing or moving the tackle.
The compact Multi-Fit CI4+ reel seat is designed for the larger profile of electric reels, while the semi-trigger EVA accommodates different hand sizes and grip styles. A V Hold front grip uses a V-shaped cross section to improve grip security and stability during powerful fights.
Additional features include Spiral X Core, Hi-Power X, titanium-frame SiC guides and a two-piece Grip Joint construction. The lineup consists of four models.
B63-3 is a technical model for nearshore applications, with reference targets of pelagic fish up to 10 kg plus additional capacity and tuna up to 20 kg plus additional capacity. B60-4 is the standard all-round model, targeting pelagic fish up to 15 kg plus additional capacity and tuna up to 30 kg plus additional capacity.
B510-5 is a power model for deep water and fast-current areas, targeting pelagic fish up to 20 kg plus additional capacity and tuna up to 45 kg plus additional capacity. B58-6 is the strongest model for large fish and remote-island waters, targeting pelagic fish up to 25 kg plus additional capacity and tuna up to 60 kg plus additional capacity.
PRODUCT OVERVIEW
01 · Overview
Shimano Ocea EJ is a dedicated electric jigging rod series engineered for greater power, comfort and control. Its specialized blank design focuses on a soft-tip and heavy-butt concept. The softer tip helps anglers recognize jerk timing while absorbing the initial force and direct impact generated by the powerful retrieve of an electric reel, reducing unnecessary over-action. The butt section provides the power for working the jig, while the bending fulcrum is positioned closer to the angler to reduce physical load. This balance supports high-speed jerking as well as slow- and medium-speed presentations, while the blank bends through the grip area to store energy and generate strong response for precise control of heavy jigs. During fights, the tenacious bending action absorbs resistance and helps reduce hook-offs. The guide system uses a spiral layout with lightweight single-foot X Guide 3D Titanium guides in the tip section. Their cold-forged integrated titanium construction combines strength, low weight and a smooth edge-free shape, while the calculated guide angle helps reduce line trouble and promotes smooth line flow. Short guide feet also allow the blank to bend more naturally. A newly developed cable holder secures the electric reel cable at the rear end of the grip, reducing cable movement during jerking and allowing quick attachment and removal when setting up, storing or moving the tackle. The compact Multi-Fit CI4+ reel seat is designed for the larger profile of electric reels, while the semi-trigger EVA accommodates different hand sizes and grip styles. A V Hold front grip uses a V-shaped cross section to improve grip security and stability during powerful fights. Additional features include Spiral X Core, Hi-Power X, titanium-frame SiC guides and a two-piece Grip Joint construction. The lineup consists of four models. B63-3 is a technical model for nearshore applications, with reference targets of pelagic fish up to 10 kg plus additional capacity and tuna up to 20 kg plus additional capacity. B60-4 is the standard all-round model, targeting pelagic fish up to 15 kg plus additional capacity and tuna up to 30 kg plus additional capacity. B510-5 is a power model for deep water and fast-current areas, targeting pelagic fish up to 20 kg plus additional capacity and tuna up to 45 kg plus additional capacity. B58-6 is the strongest model for large fish and remote-island waters, targeting pelagic fish up to 25 kg plus additional capacity and tuna up to 60 kg plus additional capacity.
Shimano Ocea EJ es una serie de cañas específicamente diseñada para jigging eléctrico, desarrollada para ofrecer mayor potencia, comodidad y control. Su blank especializado se basa en un concepto de punta suave y butt potente. La punta flexible facilita reconocer el momento del jerk y absorbe la fuerza inicial y los impactos directos producidos por la potente recuperación de un carrete eléctrico, reduciendo movimientos excesivos innecesarios. La sección del butt proporciona la potencia necesaria para trabajar el jig, mientras que el punto de apoyo de la flexión se desplaza hacia el pescador para reducir la carga física. Este equilibrio permite realizar jerks de alta velocidad, así como presentaciones lentas y de velocidad media. El blank se flexiona hasta la zona del grip, acumulando energía y generando una potente respuesta para controlar con precisión jigs pesados. Durante el combate, su flexión tenaz absorbe la resistencia del pez y ayuda a reducir pérdidas por desenganche. El sistema de anillas utiliza una disposición en espiral y X Guide 3D Titanium de pata simple y bajo peso en la sección de la punta. Su estructura integral de titanio forjado en frío combina resistencia, ligereza y una forma suave sin bordes, mientras que el ángulo calculado de las anillas ayuda a reducir problemas con la línea y favorece una salida fluida. Las patas cortas también permiten una flexión más natural del blank. El nuevo soporte para cable fija el cable del carrete eléctrico en el extremo del rear grip, reduciendo su movimiento durante los jerks y permitiendo colocarlo o retirarlo rápidamente al preparar, guardar o mover el equipo. El compacto reel seat Multi-Fit CI4+ está diseñado para adaptarse al volumen de los carretes eléctricos, mientras que el semi-trigger EVA permite diferentes tamaños de mano y estilos de agarre. El V Hold front grip utiliza una sección transversal en forma de V para mejorar el agarre y la estabilidad durante combates potentes. También incorpora Spiral X Core, Hi-Power X, anillas con frame de titanio y aro SiC, y construcción Grip Joint de dos piezas. La gama está formada por cuatro modelos. B63-3 es un modelo técnico para pesca costera, con objetivos de referencia de pelágicos de hasta 10 kg más margen adicional y atunes de hasta 20 kg más margen adicional. B60-4 es el modelo estándar polivalente, para pelágicos de hasta 15 kg más margen adicional y atunes de hasta 30 kg más margen adicional. B510-5 es un modelo potente para aguas profundas y zonas de corriente rápida, para pelágicos de hasta 20 kg más margen adicional y atunes de hasta 45 kg más margen adicional. B58-6 es el modelo más potente, destinado a grandes peces y aguas de islas remotas, para pelágicos de hasta 25 kg más margen adicional y atunes de hasta 60 kg más margen adicional.
Shimano Ocea EJ 是專為電動鐵板釣設計的高階專用竿系列,著重於提升力量、舒適性與操作控制。專用竿身採用 Soft Tip + Heavy Butt 的設計理念。柔軟竿先不僅容易掌握抽竿時機,也能吸收電動捲線器強力收線啟動時產生的直接衝擊,抑制不必要的過度動作。操控鐵板的主要力量則由 Butt 區域負責,並透過將彎曲支點向手部方向移動的設計降低釣手實際感受到的負荷。這種平衡不僅適合高速抽動,也能自由應對慢速與中速抽動。竿身可一路彎曲至握把區域,蓄積能量並產生強大回彈反應,使重型鐵板也能獲得精準控制。搏魚時,富有韌性的彎曲能吸收魚體反抗所產生的衝擊,降低脫鉤風險。導環系統採用 Spiral Guide 螺旋配置,竿先區域搭載輕量化單腳 X Guide 3D Titanium。其以 Shimano 冷間鍛造與 3D 技術製成一體式鈦合金結構,兼具輕量、高強度與無銳角的平滑造型,經計算的導環角度可降低纏線風險並提供順暢出線。縮短導環腳長度也能讓竿身呈現更自然流暢的彎曲曲線。新開發 Cable Holder 可將電動捲線器電源線固定於後握把末端,減少抽竿時電線晃動,並可快速拆裝,方便船上設定、收納與移動釣具。Compact Multi-Fit CI4+ 捲線器座針對體積較大的電動捲線器設計,Semi-Trigger EVA 則可適應不同手掌大小與握持方式。V Hold 前握把採用 V 字型截面,提高握持力與穩定性,有助於大型魚搏鬥。其他主要技術包括 Spiral X Core、Hi-Power X、鈦合金框架/SiC 環導環以及 Grip Joint 兩節式結構。系列共有四款。B63-3 是近海技術型號,參考對象為 10 kg 級以上青物以及 20 kg 級以上鮪魚。B60-4 是適用範圍廣泛的標準型號,參考對象為 15 kg 級以上青物與 30 kg 級以上鮪魚。B510-5 是適合深場及快速潮流區域的 Power 型號,參考對象為 20 kg 級以上青物與 45 kg 級以上鮪魚。B58-6 是適合大型魚及離島海域的 Strong 型號,參考對象為 25 kg 級以上青物與 60 kg 級以上鮪魚。
02 · Specifications
| Model | Length | Joint Type | Sections | Closed Length | Weight | Tip Diameter | Reel Seat Position | Reel Seat Type | Carbon Content | Jig Weight | PE Line | Max Drag | Max Drag Angle | Grip Type | Product Code | JAN |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B63-3 | 6'3" / 1.91 m | Grip Joint | 2 | 132.8 cm | 163 g | 2.3 mm | 409 mm | DOWNLOCK | 94.9% | MAX 230 g | MAX 3 | 5 kg | 45° | Separate | 358516 | 4969363358516 |
| B60-4 | 6'0" / 1.83 m | Grip Joint | 2 | 125.3 cm | 172 g | 2.4 mm | 409 mm | DOWNLOCK | 95.2% | MAX 300 g | MAX 4 | 6 kg | 45° | Separate | 358523 | 4969363358523 |
| B510-5 | 5'10" / 1.78 m | Grip Joint | 2 | 120.3 cm | 169 g | 2.5 mm | 409 mm | DOWNLOCK | 95.3% | MAX 350 g | MAX 5 | 8 kg | 45° | Separate | 358530 | 4969363358530 |

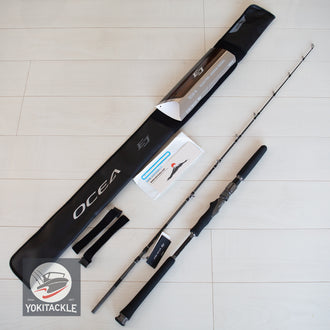

| B58-6 | 5'8" / 1.73 m | Grip Joint | 2 | 115.2 cm | 174 g | 2.6 mm | 409 mm | DOWNLOCK | 95.3% | MAX 400 g | MAX 6 | 10 kg | 45° | Separate | 358547 | 4969363358547 |
