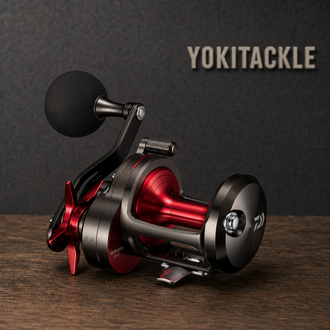

DAIWA GENPAO ISHIDAI LIGHT 20H

Created for a lighter approach to dedicated ishidai fishing, the DAIWA GENPAO ISHIDAI LIGHT 20H combines a 470 g machine-cut body with a fast 100 cm retrieve and substantial line capacity.

MAGSEALED, ATD and SPEED SHAFT work with the rigid aluminium frame, powerful drive gear and adjustable long handle to deliver protected, controlled performance in a compact 20-size format.

DAIWA / GENPAO ISHIDAI LIGHT

A lighter approach to serious ishidai fishing.

GENPAO ISHIDAI LIGHT introduces a compact 20-size machine-cut reel for anglers building a lighter, more responsive tackle balance for Japanese striped beakfish.

At 470 g, the 20H combines high-speed 100 cm retrieve with the structural confidence, line capacity and drag control required for dedicated rock-shore work.

Product Overview

Compact dimensions without abandoning purpose-built strength.

A one-piece machine-cut aluminium frame and metal side plate form the rigid foundation of the 20H. The strong machine-cut drive gear transfers input efficiently, while the large EVA knob and adjustable 95/85 mm long handle provide deliberate leverage.

MAGSEALED limits seawater and dust intrusion. ATD delivers a smooth initial response and continues to track changing fish pressure. SPEED SHAFT reduces unnecessary spool load while supporting both rotation and winding power.

A centrifugal brake and click mechanism add practical control for casting and line movement.

Retrieve100 cm/turn

Gear Ratio6.4

Max Drag8 kg

Important: Line capacities are approximate and retrieve is measured per complete handle turn.

Specifications

GENPAO ISHIDAI LIGHT 20H specifications.

The supplied values and units are retained exactly for the single 20H model.

Model	Weight	Retrieve	Gear Ratio	Nylon Line Capacity	PE Line Capacity	Handle Arm	Bearings	Max Drag	Spool Diameter	JAN Code
20H	470 g	100 cm/turn	6.4	14-140, 16-120 (No.-m)	5-360, 6-300 (No.-m)	85–95 mm	6/1 (Ball/Roller)	8 kg	50 mm	4960652126205

Specification values and units are reproduced exactly as supplied.

Core Technology

Protection, drag response and low-load spool support.

MAGSEALED

A magnetic-oil wall limits seawater and dust intrusion.

ATD

Smooth startup and consistent drag tracking support focused fish control.

SPEED SHAFT

A low-load spool support structure balances rotation with winding power.

Technology Details

Verified DAIWA systems for demanding saltwater use.

MAGSEALED

Magnetic-oil sealing structure

A magnetic-fluid wall occupies the gap in the body structure, helping block seawater and dust.

ATD

Smooth initial response and tracking

The drag starts progressively and follows the fish's pull so the angler can concentrate on the fight.

SPEED SHAFT

Efficient spool support

The spool is supported by ball bearings without the conventional shaft running directly to the gear, reducing unnecessary load.

Product Features

Purpose-built control in a lighter 20-size body.

470 g Lightweight Body

A compact platform supports a lighter rod, rig and line balance.

Machine-Cut Frame

One-piece aluminium construction and a metal side plate provide rigidity.

Machine-Cut Drive Gear

A strong drive gear supports purposeful winding under load.

Adjustable Long Handle

The arm can be set to 85 or 95 mm and uses a large EVA knob.

Centrifugal Brake

Braking supports controlled spool behavior during casting.

Click Mechanism

An audible signal provides feedback as line moves.

Design Approach

Opening a new balance for ishidai tackle.

The LIGHT concept pairs a smaller machine-cut reel with lighter rods, rigs and line to create a more responsive interpretation of ishidai fishing.

Its design retains the structural and control systems expected of a dedicated reel while reducing overall mass to 470 g.

Series Family

A dedicated single-model LIGHT specification.

20H

High-speed light ishidai model

470 g · 6.4 ratio · 100 cm retrieve · 8 kg maximum drag.

Line Capacity

Heavy nylon and PE support

Nylon 14-140 / 16-120; PE 5-360 / 6-300 (No.-m).

Handle

Selectable leverage

Large EVA knob with 85–95 mm adjustable arm.

Accessories / Notes

Operating reference.

RetrievePublished retrieve is measured per complete handle rotation.
Line capacityPublished capacities are approximate and vary by line, manufacturer and winding tension.
Saltwater careFollow the manufacturer's maintenance instructions after use.
